Foot mounting: Track dimension 26mm or 18 mm possible
Type of protection: IP42 or IP44
Electrical connection: Jacketed cable 3x0.5 m㎡ with brass lead tips
Product conforming to standard: CE
Approvals: VDE( except 3W),CCC
—Material: Housing made of die-cast aluminium
Stator pack: coated in black
—Direction of air flow: "S"or "B"(depending on axial impeller used)
—Direction of rotation: clockwise(or counterclockwise), seen on shaft end
—Insulation class: B
—Mounting position: Any, preferrably horizontal
—Condensate discharges: None
—Mode of operation: Continuous operation (S1)
—Bearings: self-adjusting calotte sleeve bearing(mean service life of 30,000 hours in horizontal installations position)
—Motor protection: impedance switched ( combination D-H)
—Mounting: guard grille and wall ring are mounted onto the protruding thread ends of theA side.The Q-motor can also be screwed on via the mounting flanges (integrated in the bearing shields).
—Axial impeller mounting: Mounted to the motor shaft using a plastic adapter with pulling peg and an M4 screw(combination A-D) OR M5 (combination E-H) screw.
To optimize motors performance, we can also supply our clients with a variety of brackets, rings, fan blades, guard grill,etc.
Ningbo Hairong Machinery, founded in 2007, is one of the leading manufacturer of fans and motor covering HVAC area. We specialized in developing and manufacturing refrigeration motors, condensate removal water pumps, external rotor motor powered axial fans, muffin fans, backward curved centrifugal fans, forward curved centrifugal fans, duct fans, blowers and YZF25-40 25w Fan Motor Aluminum Wire Copper Wire. The products are widely used in the refrigeration, ventilation, fresh air, purification, air conditioning, power electronics, and IT industries.

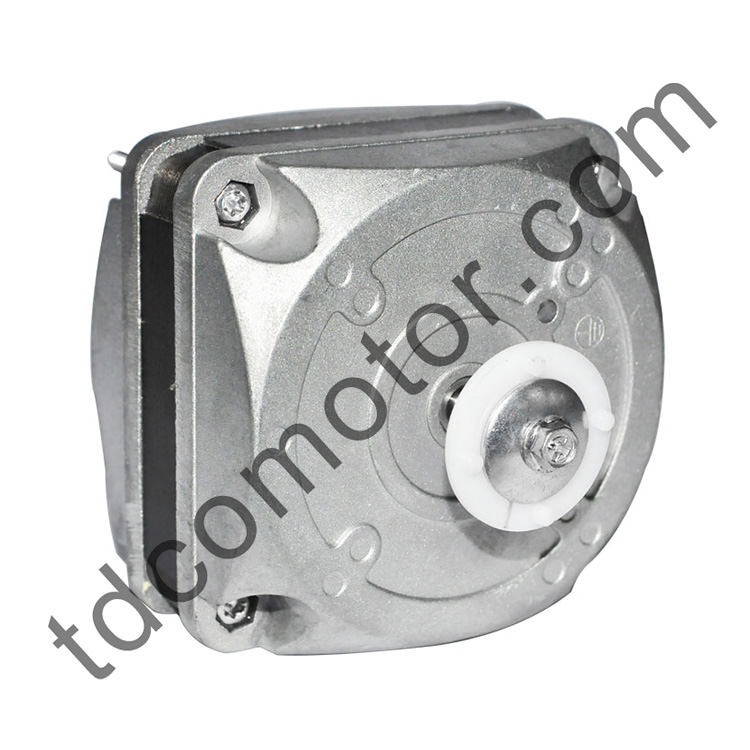

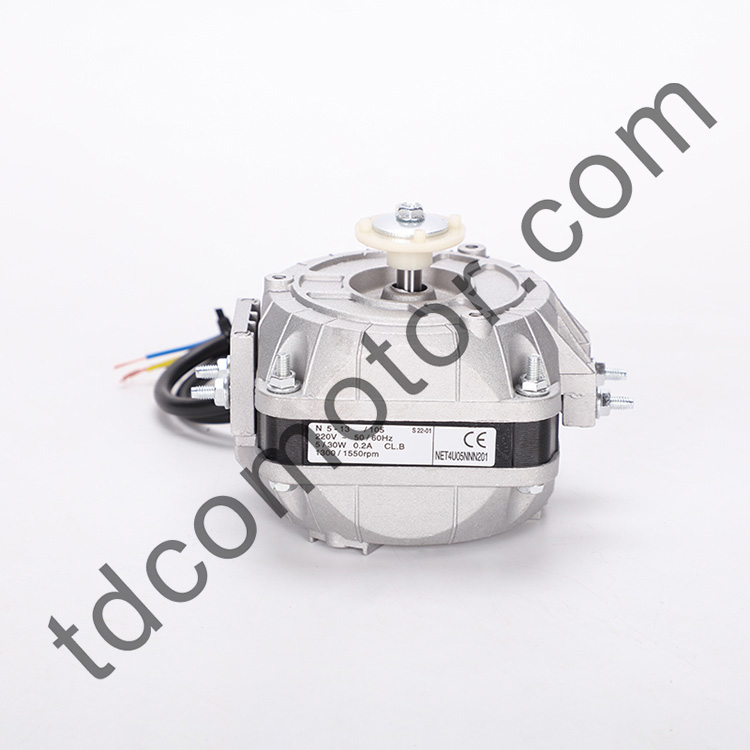

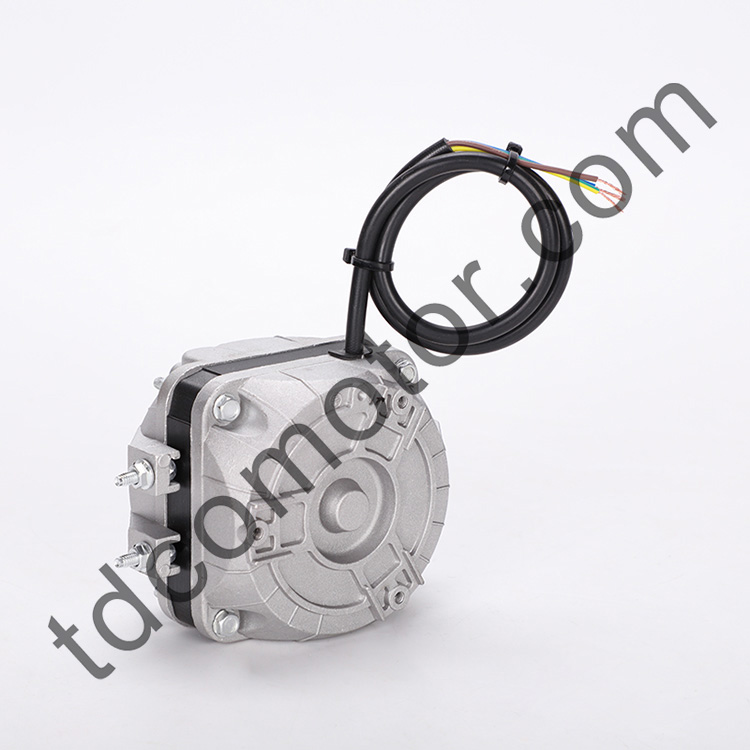

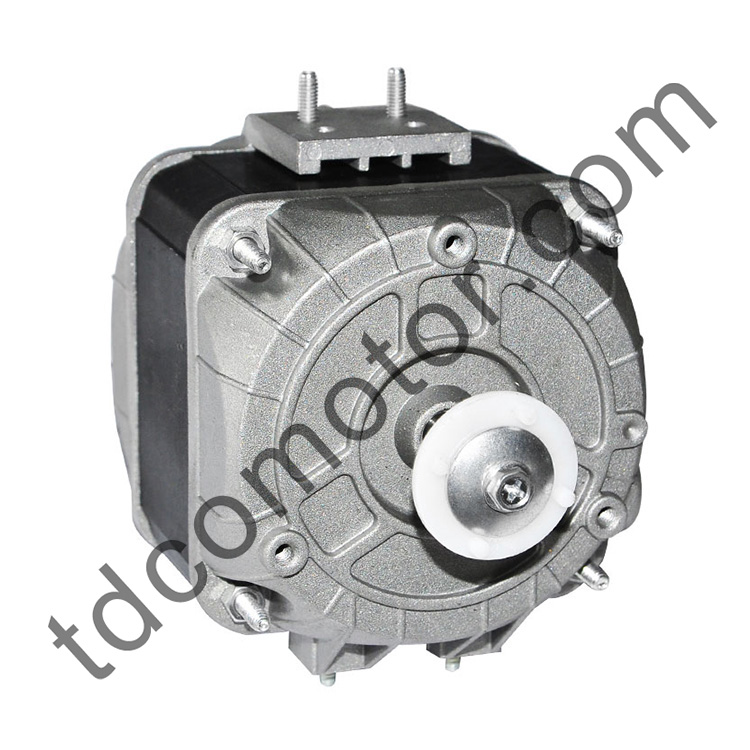

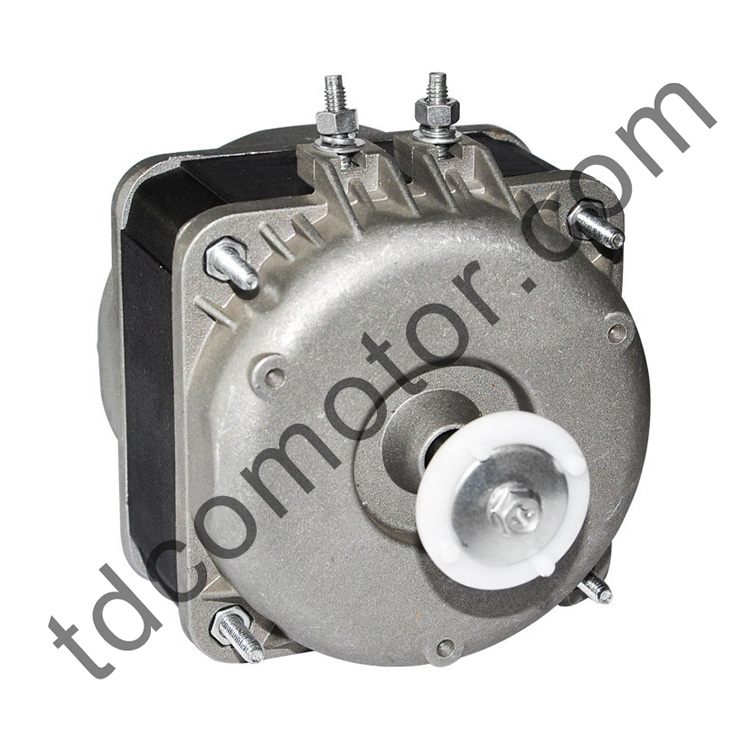

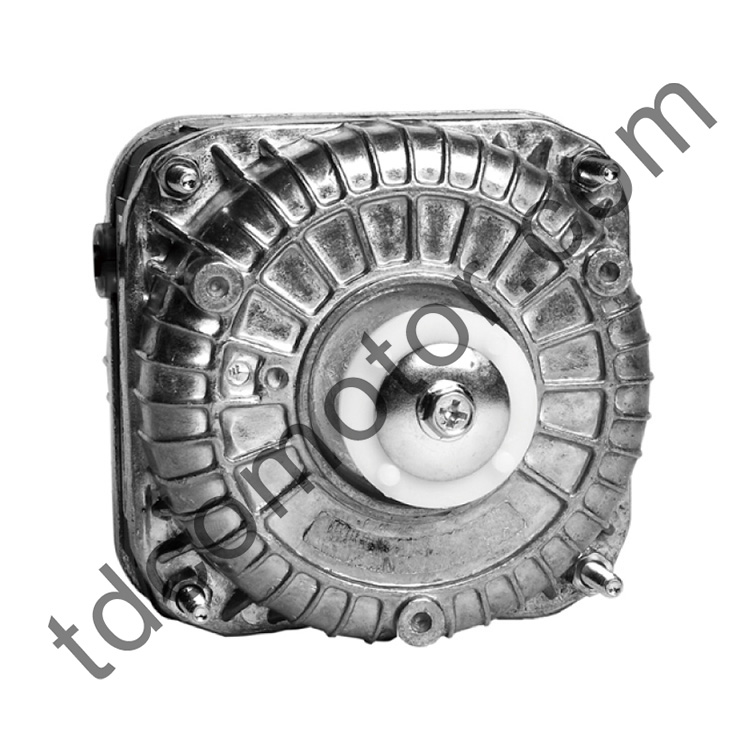

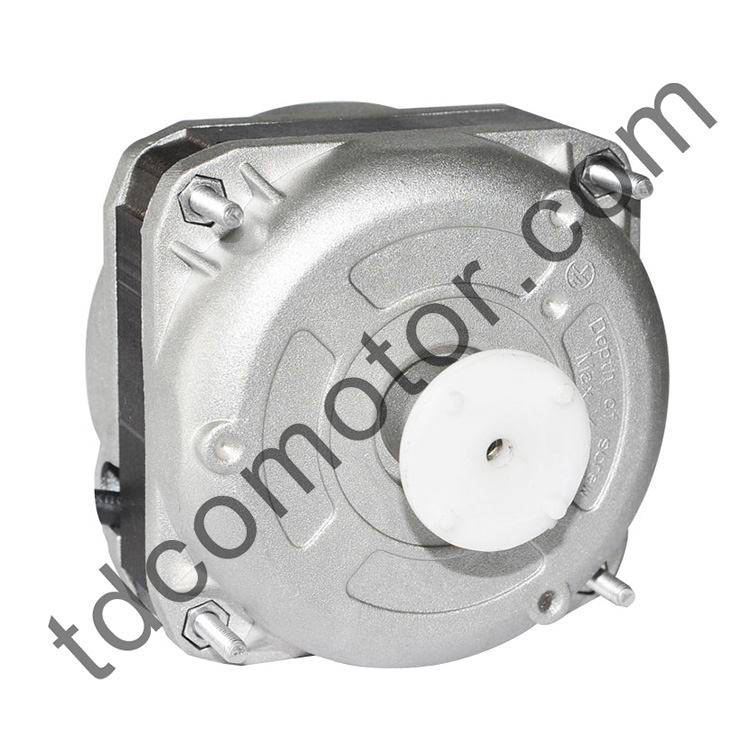

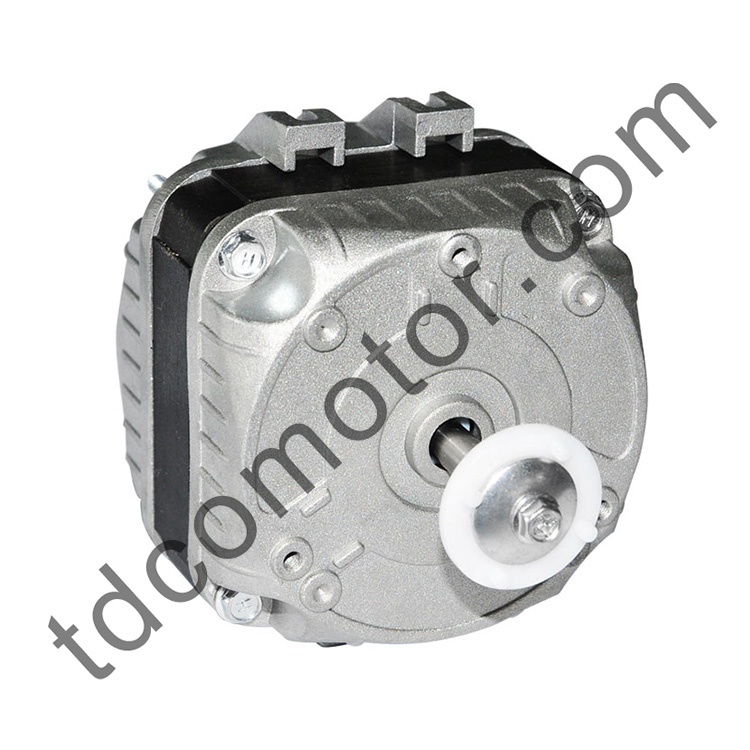

These pictures can better help you understand YZF25-40 25w Fan Motor Aluminum Wire Copper Wire
Ningbo Hairong is ISO9001 Quality Management System and ISO14001 Environmental Management System certified, YZF25-40 25w Fan Motor Aluminum Wire Copper Wire are CCC, CE approved and most of them are UL approved, as well as RoHS standards complaint.
